If you’ve recently started your journey into Amateur Radio, you’ve probably noticed one thing very quickly: cables are everywhere. Between your HF rig, your dual-band mobile, and your various antennas, the back of your desk can start to look like a bowl of spaghetti.

At Tecomart, we believe your radio experience should be about making contacts, not swapping cables. That’s where the Diamond Antenna series comes in.

What Is a Duplexer or Triplexer? (The Beginner’s Guide)

Think of these as smart traffic controllers for your radio signals.

• Duplexer (like the MX-62): Lets you use two different frequency ranges (for example, HF and UHF) on a single cable.
• Triplexer (like the MX-2000): Allows three different frequency ranges to share one antenna or cable.

Diamond Antenna is world-renowned for making low-loss components, meaning they don’t weaken your signal as it passes through.

Finding the Right Match at Tecomart

1. The Standard Duplexers: MX-62 & MX-72 Series

These are perfect for hams running a standard HF + VHF/UHF setup.

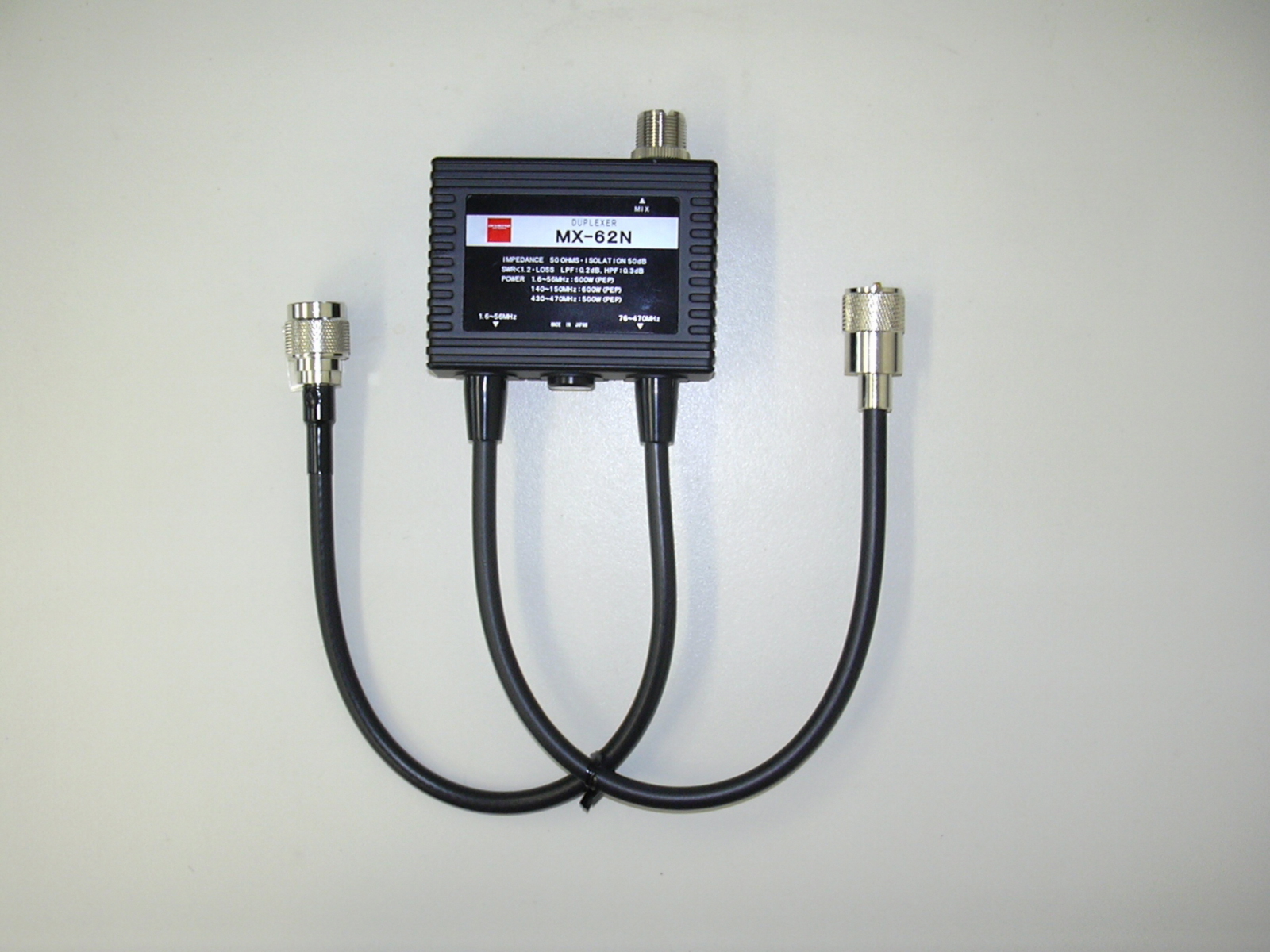

• MX-62M / MX-62N: Robust and powerful, handling up to 600W (PEP). If you use N-Type connectors for your UHF gear, the MX-62N is the best option for a cleaner signal.
• MX-72 Series (A, D, H, N): Ultra-compact units offering up to 60dB isolation, ensuring that transmitting on one band does not interfere with another radio.

2. The Powerhouse Triplexers: MX-2000 & MX-3000

For operators who want maximum flexibility, a triplexer is a major station upgrade.

• MX-2000 / MX-2000N: Supports 6m, 2m, and 70cm (HF/50/144/430MHz) through a single feed line, with power handling up to 800W.
• MX-3000 / MX-3300: Designed for advanced operators, including support for the 1200MHz (23cm) band. These models use LPF/BPF/HPF filtering to keep signals cleanly separated.

3. For the Listeners: SS500 Splitter

If you are a Shortwave Listener (SWL) or scanner user, the SS500 is a wideband splitter (0.5–500MHz) that allows two receivers to share one antenna without noticeable signal loss.

MX3300MN: HF 144/430/1200MHz

Which Connector Do I Need?

Tecomart stocks multiple connector configurations to match existing equipment:

• M-P (PL-259): Standard for most HF and VHF radios.
• N-P (N-Type): Preferred for UHF and 1200MHz operation due to significantly lower signal loss at higher frequencies.

Splitter/Combiner for Recieving : SS500: 0.5 to 500MHz

Comparison Table

Model	Type	Bands Supported	Max Power
MX-62M	Duplexer	HF/6m + VHF/UHF	600W
MX-72N	Duplexer	HF/VHF + UHF	1000W (HF)
MX-2000N	Triplexer	6m + 2m + 70cm	800W
MX-3000N	Triplexer	2m + 70cm + 23cm	800W
SS500	Splitter	0.5–500MHz	Receiving Only

Why Buy Diamond Antenna Products from Tecomart?

A poorly made duplexer or triplexer can cause high VSWR, potentially damaging expensive final transistors in your radio. Diamond Antenna products are known for:

• Minimal Loss: Less than 0.2dB in most models.
• Built to Last: High-quality 5D-2VS coaxial tails and heavy-duty shielding.
• Tecomart Support: Expert guidance to help you choose the right model.

Upgrade Your Station Today

Stop swapping cables and start operating more efficiently.

Visit www.Tecomart.co to see the full Diamond Antenna duplexer and triplexer inventory.
